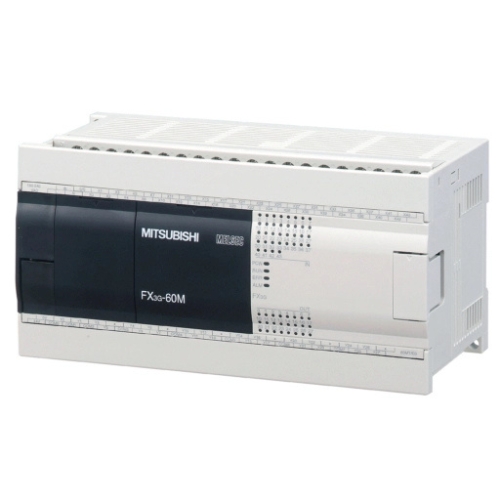

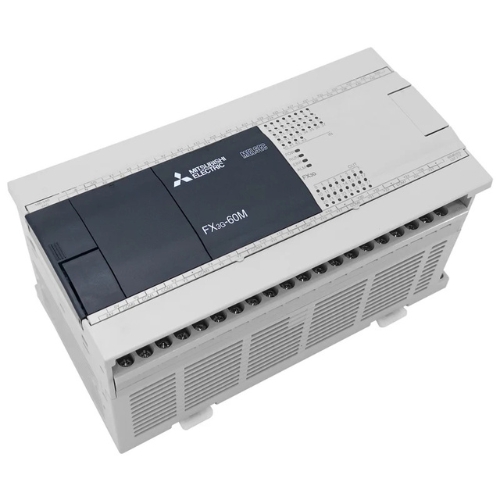

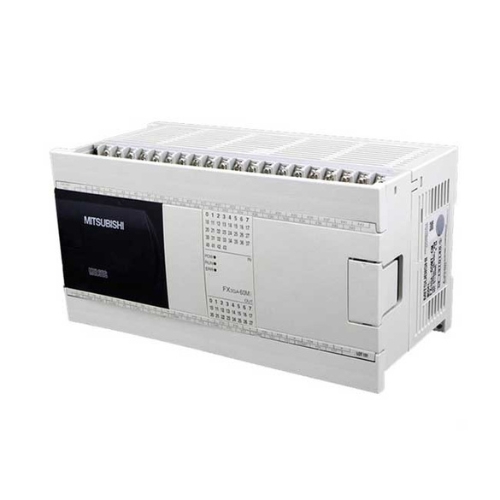

Mitsubishi FX3GA-60MR-CM Input Output Module FX3GA60MRCM

• Extended Product Type: FX-series

• Product ID: FX3GA-60MR-CM

• Mitsubishi Type Designation: FX-series

Features of Mitsubishi FX3GA-60MR-CM Input Output Module

• [Up to 256 input/output points] The total number of inputs and outputs (128 points maximum) directly connected to the PLC and remote inputs and outputs (128 points maximum) of the CC-Link can be extended to 256 points.
• The PLC has two built-in variable analog potentiometers available for adjusting the timer set time.
• *For peripheral devices not applicable to FX3G Series, specify FX1N Series for model selection, and you can program the sequence. In this case, use instructions and devices within the ranges common to FX3G Series and the selected model of PLC.

• Remote debugging of program]

• Use of programming software (GX Works2, GX Developer) enables you to remotely transfer programs and monitor PLC operation through a modem connected to the RS-232C expansion board or RS-232C communication special adapter

Specification of Mitsubishi FX3GA-60MR-CM Input Output Module

• Input and output points: 24 points
• Power supply: AC100-240V.
• Input points: 14 points.
• Output points: 10 points
• Power consumption: 32W.
• Weight: 0.55KG.
• dimension: 90x90x86mm.
